SIEMENS CONVERTER IN INDIA

Leading distributor and dealer of Converter from Siemens in India

    DELTA

    ABB

    SCHNEIDER

    MITSUBISHI

    PANASONIC

    YASKAWA

    Overview

    Automation Direct India is a leading dealer and distributor of Siemens Converter in India. We distribute Siemens Converter in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad and Delhi.

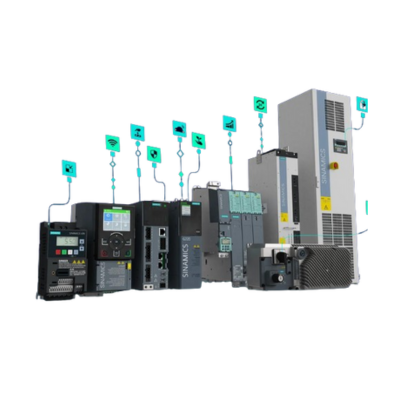

    With SINAMICS variable frequency drives, you can address every application and operate synchronous or induction motors. Our drives with integrated safety can be centrally installed in control cabinets, mounted on walls or decentrally. They operate with energy-saving performance, whether for pumping, ventilating, moving, positioning, processing or machining. SINAMICS – simply my drive!

    SINAMICS G220 is the new high-performance variable frequency drive designed to meet current and future challenges in every industry. As the first SINAMICS drive to join the Siemens Xcelerator portfolio, SINAMICS G220 is equipped with the necessary functions to make your applications more

    SIEMENS LOW VOLTAGE CONVERTER

    SIEMENS MEDIUM VOLTAGE CONVERTER

    SIEMENS CONVERTER

    SIEMENS CONVERTER – Protocol Converter

    TS… series Protocol Converter provides a flexible communication interface to the building management system (BMS) for streamlined collection and monitoring. Supports LMV3, LMV5, RWF55, and all TS… Series Lead Lag Master Panel, Touchscreen Kits, Combustion Enclosures, and Deaerator/Surge Panels.

    Highlights

    Converts Modbus/RTU to BACnet/IP, BACnet MS/TP, Metasys N2, Modbus TCP/IP or LonWorks

    Allows simultaneous connection of up to 64 devices via serial connections

    Allows simultaneous connection up to 12 TS… Series devices via Ethernet Modbus
    A TS… series protocol converter provides a flexible communication interface to the building management system (BMS) for streamlined data collection and monitoring.

    Specifications

    Converts native Modbus/RTU to BACnet/IP, BACnet MS/TP, Ethernet/I/P Metasys N2, Modbus TCP/IP, or LonWorks

    Allows simultaneous connection of up to 64 devices via serial connections, and up to 12 devices via Ethernet Modbus TCP/IP connections

    Easily configured using web browser
    61 data points per LMV3…
    153 data points per LMV5…
    13 data points per RWF10
    57 data points per RWF40
    73 data points per RWF55
    364 data points per TS Series Touchscreen Kit
    23 data points per TS Series Lead/Lag Master
    85 data points per TS Series Lead/Lag Master (from each boiler)
    52 data points per TS Series Deaerator/Surge Tank Master

    Appliactions

    TS… protocol converter kits are suited for applications with BMS protocol other than Modbus TCP/IP or RTU. All SCC products that communicate using Modbus/RTU are compatible.

    SIEMENS CONVERTER – IP Converter

    Specifications

    Input: 4-20mA

    Output: 3-15 psig

    250KPA MWP 15VDC MAX

    Supply Pressure: 20 psig (35 psig for 771-8_ _ _)

    Zero Offset Adjustment: +40% and –20% of span

    Output Capacity: Standard: 0.16 scfm Boosted: 2.0 scfm

    Supply Pressure Effect: Less than 2% of span (change of output for supply change from 18 to 22 psig)

    Temperature Range:-40 to 180°F (-40 to 82°C)

    Electrical Connections: Enclosed terminal block, 1/2″ threaded

    Enclosed: NEMA 3RNEMA 4 via conduit ven

    Performance Specifications

    SIEMENS CONVERTER – Media Converter

    RUGGEDCOM Media Converters are part of our industrial network communications portfolio. The units are industrially hardened and specifically designed to operate reliably in electrically harsh and climatically demanding environments such as those found in electric utility substations and factory floors.

    RUGGEDCOM Media Converters offer a wide range of benefits from reduced installation, configuration, and management costs to an improved ROI on legacy devices. They combine the advantages of conventional copper data cables with those of fiber optic cables providing copper-to-fiber, serial-to-fiber or serial-to-IP conversion and bridging the gap between copper and fiber-optic network segments.

    Copper data cables are vulnerable to electromagnetic interference. Using RUGGEDCOM Media Converters ensures the data integrity and provides lossless and interference-free data transmission for mission critical applications.

    RUGGEDCOM Media Converters link the flexibility of Ethernet devices to the spectrum of fiber optics.

    Benefits

    Media and speed conversion

    Serial (RS232/RS422/RS485) to fiber conversion

    Serial to Ethernet conversion including Modbus RTU to Modbus TCP conversion
    Immunity to electro-magnetic interference
    Industrial temperature range of –40 to 85 °C
    Simple Plug and Play Operation
    High Performance Ethernet Switching
    Link Pass Through support
    Configuration, operation and maintenance cost saving

    Applications

    IEC 61850-3 and IEEE 1613 (electric power)
    IEC 61000-6-2 (generic industrial)
    NEMA TS-2 (traffic control equipment)
    EN 50121-4 (railway)
    EN 50155 (on-board rail vehicles)

    SIEMENS CONVERTER – AC DC Converter

    The 6EP1333-2BA20 from Siemens is a SITOP PSU100S stabilized power supply. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 5A output. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 2.5A output. This power supplies can continuously manage 120% of the rated power with high degree of efficiency ensuring low energy consumption and minimal heat loss in the control cabinet.

    Specifications

    Input supply range is 120VAC/230VAC

     Input current is 2.34A at 120V

    Short circuit protection
    Efficiency is 88%
    Temperature range from -25°C to 70°C
    Dimension is 50mm x 125mm x 120mm(W x H x D)
    CE, cULus, ATEX standards
    Minimum mounting space required due to slim design, no lateral installation clearances required
    Signalling contact for “output voltage OK” for easy integration in the plant monitoring system
    Adjustable output voltage for compensating voltage drops

    Applications

    Power Management
    Industrial

    SIEMENS CONVERTER – M Bus Converter

    The level converter WTV531-GA5060 is an interface between M-bus meters and reader systems. PC software ACT531 reads the data locally or via the Internet using an optional web server.

    Highlights

    Connect up to 60 M-bus devices (max. 60 simply M-bus loads)

    Use up to six level converters on one M-bus network with a max. of 360 simple Mbus loads

    Local data read out with the ACT531 PC software via USB or the RS-232 interface
    Remote read out via M-bus web server
     Local data read out via a PXC device via the RS-232 interface
    Reads a max. 1,000 logical devices on a level converter network
    Supply voltage AC/DC 24 V

    Specifications

    Operating voltage – AC/DC 24 V +/- 10 %
    AC frequency – 50/60 Hz
    Reference standard – EN13757-2 (physical layer)
    Baud rate – 300 bps…9600 bp
    Temperature – -5…+50° C
    Air humidity – 5…95 % r.h.
    Materials and colors – PC + ASA, RAL 9010 (white)
    Dimensions – 110x71x62 mm (including terminals)
